With its prefabricated foundation and high precision design, this type of tower enjoys a high speed installation and equipment. The tower is moveable due to its prefabricated foundation A fundamental advantage of this type of tower, compared to lattice tower, is its integrated sections. This tower is designed for 24 to 48 meters’ height with 6m sections and a triangular base. The above tower is capable of installing X-POLE, and Microwave mounting structures. Galvanized cover according to TIA/EIA-222F standards

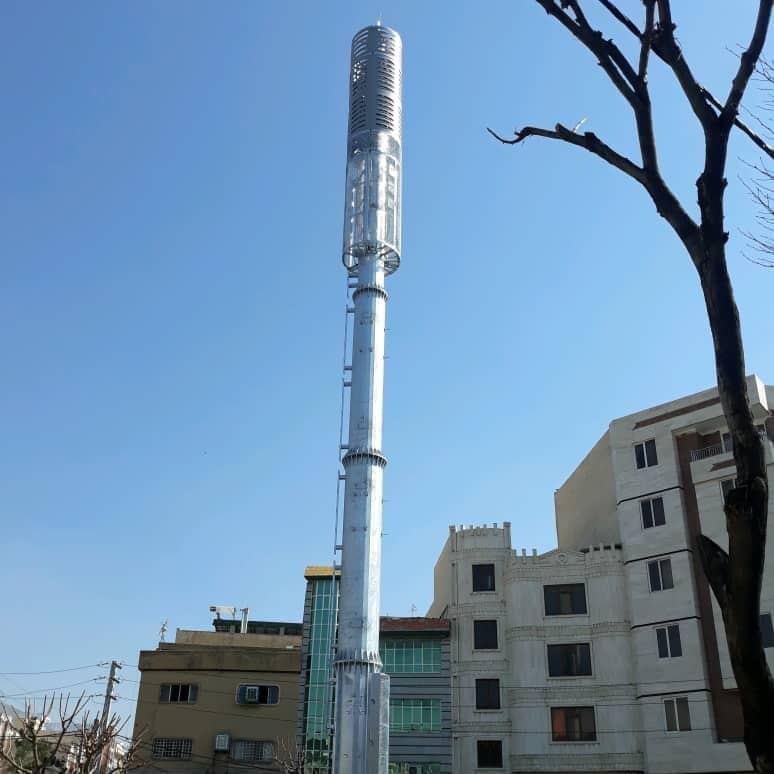

As one of the pioneers in this industry, the company is also engaged in beautifying existing towers and is cooperating with operators and municipalities in this regardDue to city beautification requirements, which prevents municipalities from issuing licenses for conventional designs for new sites, operators in Iran have encountered difficulties in implementing new towers. As a solution, the beautified tower with its unique design expedites the process of obtaining license from the related organizations. Here are some beautification designs under construction.

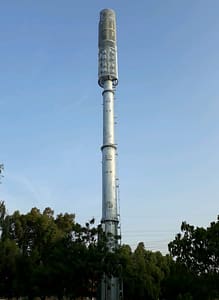

Being made of spiral and multilateral pipes, monopole tower is constructed on a single base. Due to the smaller dimension of this type of tower that requires lesser space for installation, it is used in urban environments in which the land is high in value; however, the loading capacity of monopole towers is limited. The tower is Capable of installing X-POLE, and Microwave mounting structures. Galvanized cover according to TIA/EIA-222F standards
Pole tower is the subgroup of one-leg towers which is used for lower heights. This tower has a light structure and is therefore suitable for installation on roofs. It is also called “micro tower”. The body of the tower is constructed in tubular shape, and sections are flange connected. Repeater machine is mainly based on this type of tower, and it is commonly called micro-repeater. The above tower can be designed and constructed up to 12 meters, wind speed of 160 km / h and FPA of 6 m 2.
Low weight is the advantage of this type of tower which is often used for mobile antenna networks, wireless radios and computer networks. This tower can be installed on the roof of homes and offices, taking advantage of the height of building for installation in urban areas. The towers are categorized in several groups according to their dimensions and construction. The towers are made triangular in 3m sections connected to each other.Triangular base with 45, 55 and 65 cm dimensions, 6 to 30 m tall Hot galvanized cover according to TIA/EIA-222F standard
The above rigs have the ability to design and build up to a height of 12 meters, wind speed of 160 kilometers per hour and wind surface of 6 square meters.
ow weight is the advantage of this type of tower which is often used for mobile antenna networks, wireless radios and computer networks. This tower can be installed on the roof of homes and offices, taking advantage of the height of building for installation in urban areas. The towers are categorised in several groups according to their dimensions and construction. The towers are made triangular in 3 m sections connected to each other. Triangular base with 45, 55 and 65 cm dimensions, 6 to 30 m tall Hot galvanized cover according to TIA/EIA-222F standard
